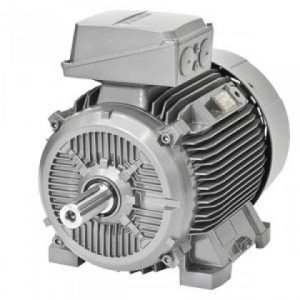

ABB, TEFC, 3-phase, squirrel cage induction motor, 3GAA 132 214-ASE, M2AA-132MA-4

Category:

PRODUCT SPECIFICATION:

  • Product ID: 3GAA132214-ASE
  • ABB Type Designation: M2AA 132MA 4
  • ABB Type Designation: M2AA 132MA 4
  • Altitude: 1000 m
  • Ambient Temperature: 40 °C
  • Bearing: 6208-2Z/C3
  • Bearing NDE: 6206-2Z/C3
  • Country of Origin: Poland (PL)
  • Customs Tariff Number: 85015220
  • Direction of Rotation: Both sides
  • Electrical Data:
    Conn Temp Class Freq Voltage Power Speed Current Power Factor
    D 50 Hz 230 V 7.50 kW 1460 r/min 26.70 A 0.790
    Y 50 Hz 400 V 7.50 kW 1460 r/min 15.30 A 0.790
    Y 60 Hz 460 V 7.50 kW 1760 r/min 12.90 A 0.810
  • Gross Weight: 59 kg
  • IC Class: IC411
  • IE Class Data (50 Hz):
    IE Class IE2
    Full Load (100%) 89.1 %
    Partial Load (75%) 89.9 %
    Partial Load (50%) 89.5 %
  • IE Class Data (60 Hz):
    IE Class IE2
    Full Load (100%) 90.0 %
    Partial Load (75%) 90.3 %
    Partial Load (50%) 89.5 %
  • IM Class: IMB3 IM1001
  • IP Class: IP55
  • Insulation Class: ICLF
  • Lubrication: For life
  • Made To Order: No
  • Minimum Order Quantity: 1 piece
  • Moment of Inertia: 0.04800 kg/m³
  • Package Level 1 Units: 0 carton
  • Poles (High): 4
  • Product Name: 3-Phase squirrel cage motor
  • Product Net Weight:59 kg
  • Selling Unit of Measure: piece
  • Standard: IEC 60034-1
  • Starting of Motor: Direct Online
  • Temperature Class Default: —
  • Terminator Box Location: D-End top
  • Two Speed Motor:No
  • Type of Duty: S1
  • Voltage Code: S
