OVERVIEW:

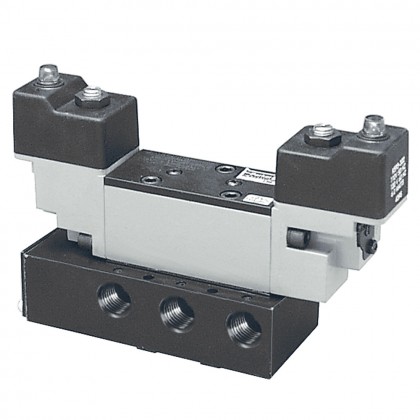

The Sprint valve is a robust, versatile  valve that is well suited for general to harsh industrial applications, such as concrete aggregate and rubber plants. The valve can be installed as a single inline or subbase valve for point-of-use applications, or mounted on segmented manifolds for centralized applications. A variety of operators are available, from air piloted to solenoid air piloted with direct conduit connection in the valve, or in the manifolds for plug in valves. The valves are field converted from standard internal to external pilot operated service and are suitable for lubricated or non-lubricated operation. Sandwich pressure regulators and flow controls can be added to the valve stack to control air pressure and flow at each valve application.

• Function(s): 5/2 , 5/3
• Positions: Solenoid Air Operated|
• Manual Operator: Non-Locking and Locking Manual Overrides
• Mounting Type: Inline, Manifold, Single Subbase
• Port Sizes (inch): 1/4, 3/8
• Port Type: NPT
• Flow Min (Cv): 1.4
• Flow Max (Cv): 1.54
• Voltage Range: 12VDC to 120AC
• Solenoid Connection Type(s): Inline | Conduit Manifold : Conduit to manifolds
• Pressure Range (psig):  25 to 150
• Pressure Range (bar): 1.5 to 10
• Solenoid Minimum Operating Pressure (psig): 35c
• Temperature Range (c):  -7 to 60
• Temperature Range (F): 20 to 140
• Media: Air
• Lubrication: Non Lube
• Body Material: Zinc Alloy
• Seal Material: Nitrile
• Coil Rating: Class B
• Unique Feature: Sandwich Regulators and Flow Controls
